2.7kg/m²Thermoplastic
Luminous Coating
Commonly used for standard pavement applications.
Photoluminescent marking materials
SolutionsAfter dark.
FUXIN luminous road marking materials are planned around surface, available charging light, layout and installation method.
Discuss your project
Sustainable& Eco-friendly
Durable& Weather-resistant
A SaferBrighter World
Project consumption guide
Material Calculation
Clear Data. Accurate Application.
Reference consumption for luminous pavement & decorative surface systems.
2.7kg/m²Thermoplastic
0.7m²/kgCold-Mix Luminous
Binder System
Applicable for coatings and thin-layer structures.
5kg/m²Luminous Aggregate
(5mm Layer)
Recommended for decorative pavement and landscape applications.
8kg/m²Luminous Aggregate
(10mm Layer)
Suitable for high-intensity glow effect and thicker pavement systems.
Designed for Accurate Planning
Helps you estimate material needs, reduce waste and ensure optimal construction results.
Typical applications
Bicycle Paths
Roads & Streets
Pedestrian Walkways
Parks & Public Areas
Decorative Pavements
Safety Guidance Areas
For special projects or different layer thickness, please contact FUXIN for technical support.
Installation guide
Photoluminescent Pavement Installation Process
A clear material route for turning a prepared surface into a durable, visible and luminous path after dark.
Project characteristics
- 01 / Material
- Photoluminescent aggregate.
- 02 / Product format
- Aggregate is supplied separately. Add the specified waterproof adhesive during installation for secure bonding.

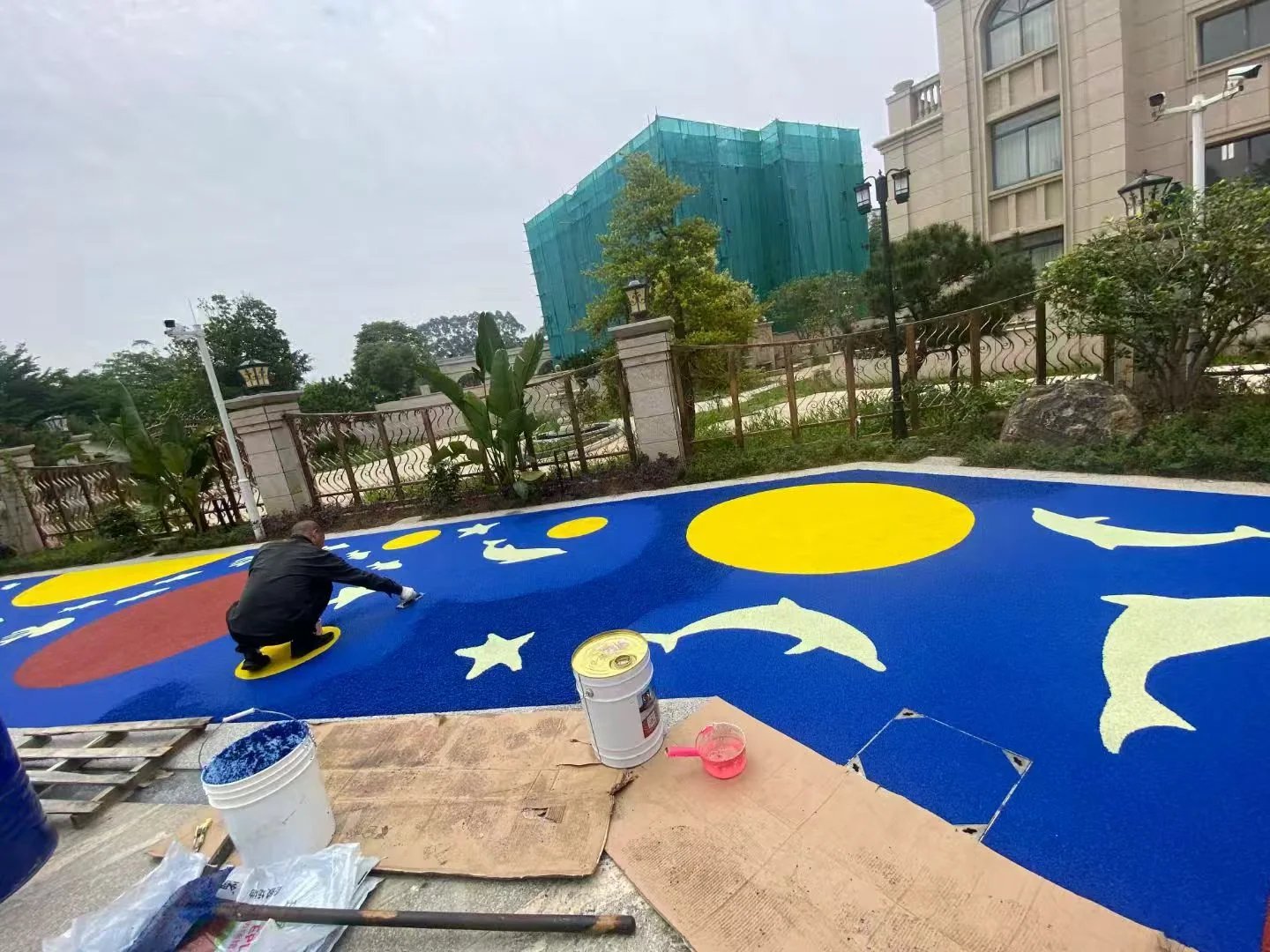

- 03 / Pattern design
- Use dedicated molds to place and fill the pattern. Remove the molds after curing, then complete the luminous aggregate fill.
- 04 / Clear-sky star effect
- For EPDM surfaces, blend the aggregate with the surface granules before spreading. On hardened surfaces—permeable concrete, asphalt, resin-bound stone and colored anti-slip ceramic aggregate—broadcast the particles onto the surface, then compact and level.
- 05 / Specifications
- Refer to the project drawings for detailed dimensions and layout.
Work scope / Base inspection and preparation
- 01 Sweep or clean
- 02 Approve sample
- 03 Backfill
- 04 Compact
- 05 Clean the work area
Product profile

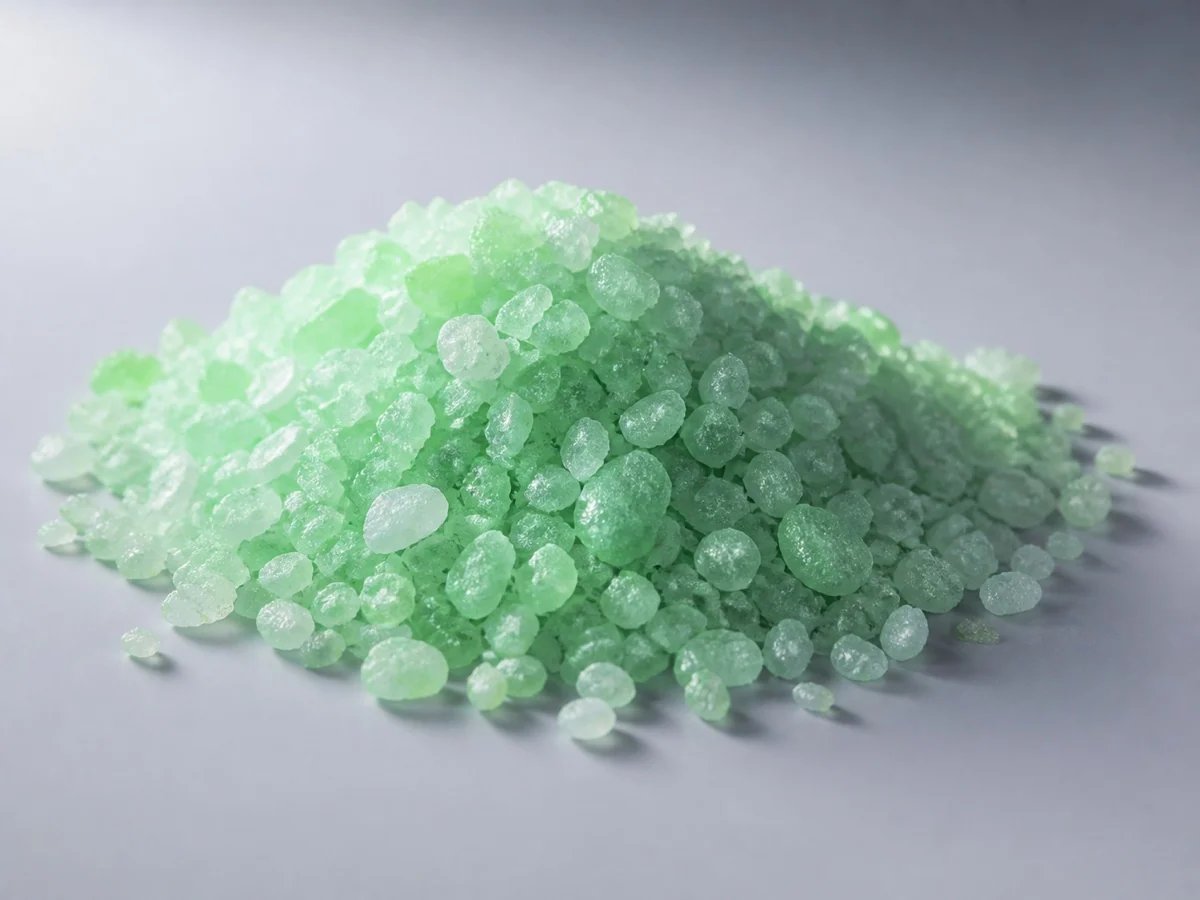

Colored Photoluminescent Aggregate
Product description
Colored photoluminescent aggregate for decorative roads, landscape paths and visual wayfinding. It combines export-grade resin with high-performance strontium aluminate photoluminescent powder, creating irregular granules that absorb natural light by day and glow for 8+ hours after dark.
Material & performance
- Material
- Export-grade special resin
- Particle sizes
- 3–5 mm · 5–8 mm · 8–12 mm
- Powder content
- 50% high-brightness photoluminescent powder
- Glow colors
- Yellow-green · Blue-green · Sky blue
- Density
- 1.5–1.6 kg/m³
- Afterglow
- >600 mcd/m² at 10 min; >90 mcd/m² at 60 min
- Test standard
- DIN 67510-1 · D65 standard light source · 1000 lx · 10 min excitation
Applications
Park paths, starry roads, garden routes, fish tanks, flower pots and aquariums.
Product profile

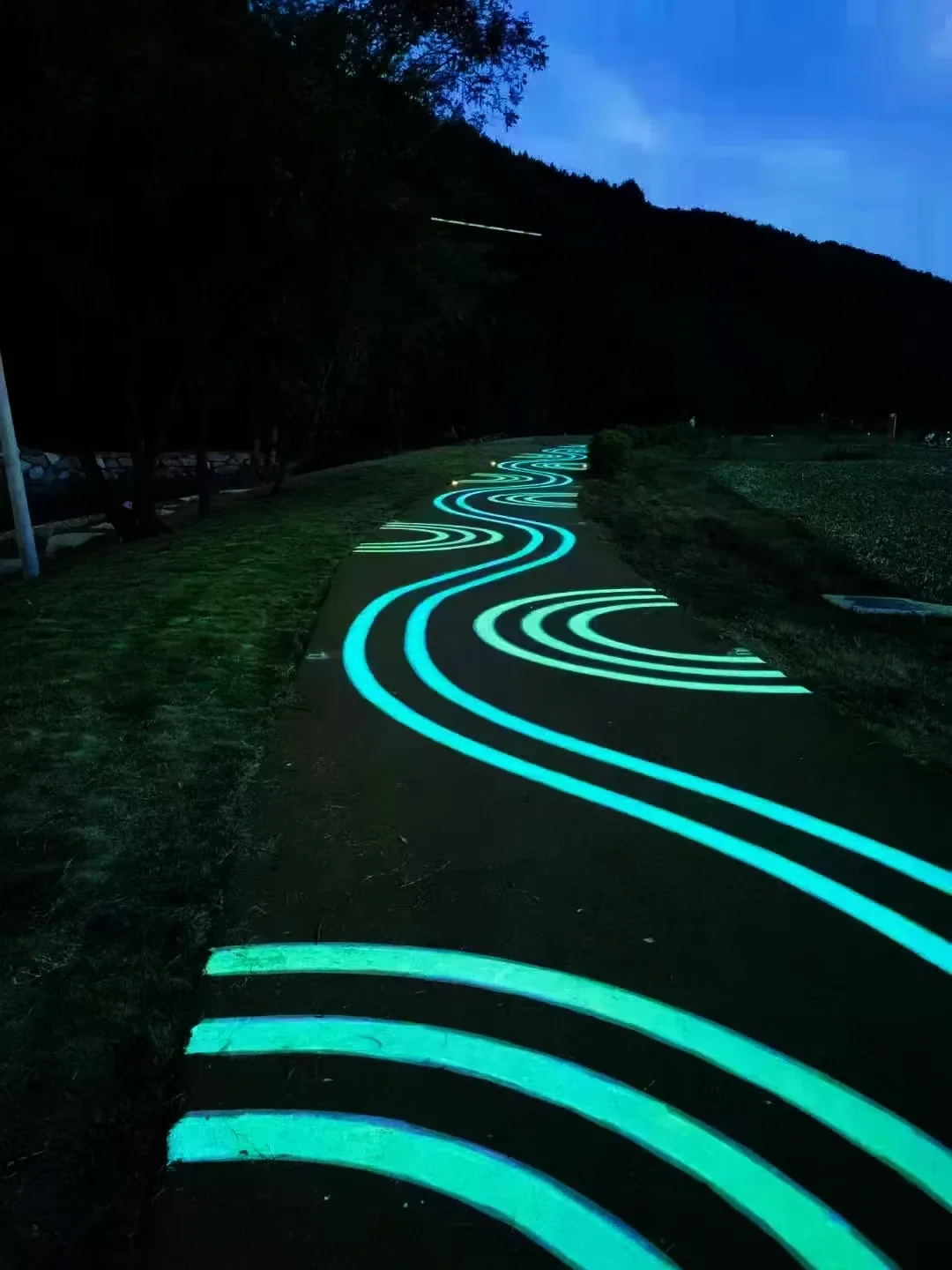

Luminescent Paint & Coating
Product description
Photoluminescent paint and coating systems for visible guidance after dark. The liquid coating combines high-quality strontium aluminate photoluminescent powder with acrylic-modified resin, absorbing natural light by day and glowing for 8–10 hours at night.
Material & performance
- Material
- Acrylic-modified resin
- Powder content
- 50% high-brightness photoluminescent powder
- Glow colors
- Yellow-green · Blue-green · Sky blue
- Density
- 2.3 g/ml
- Abrasion resistance
- 0.44 L/μm
- Adhesion strength
- 24.5 MPa · GB/T 16777-2008
- 24-hour afterglow
- 2.6 mcd/m² · GB/T 24981.2-2020
Applications
Park greenways, community paths, road markings and decorative guidance surfaces.
