Glow-in-the-dark traffic markings provide supplementary nighttime guidance by absorbing light and releasing a visible afterglow. They can help identify selected lane boundaries, arrows, parking spaces, bicycle routes and pedestrian routes when surrounding light levels fall.
They do not replace street lighting or automatically replace standard road markings. Suitability depends on the complete marking system, the site's charging conditions, traffic wear and applicable local requirements.
How photoluminescent traffic markings work
Conventional painted lines and symbols are usually easy to identify in daylight. At night, their visibility depends heavily on streetlights, headlights and surrounding conditions. A marking containing photoluminescent material adds another visual layer:
Charge with Light → Store Energy → Glow After Dark → Recharge
The material absorbs sunlight or suitable artificial light, then gradually releases stored energy as visible afterglow when the area becomes dark. Unlike LED road markings, it does not actively produce continuous electrical light.
The glow is normally strongest shortly after darkness begins and then fades. Its visible duration depends on pigment quality, charging time, light intensity, material thickness, ambient darkness and surface condition. Gradual fading is normal photoluminescent behavior.
Choose the guidance function and location
Potential settings include parking lots, private roads, industrial parks, internal factory roads, residential communities, campuses, scenic roads, bicycle lanes, pedestrian routes, underground garages, hotels and resorts. Follow local traffic-marking regulations on public roads.

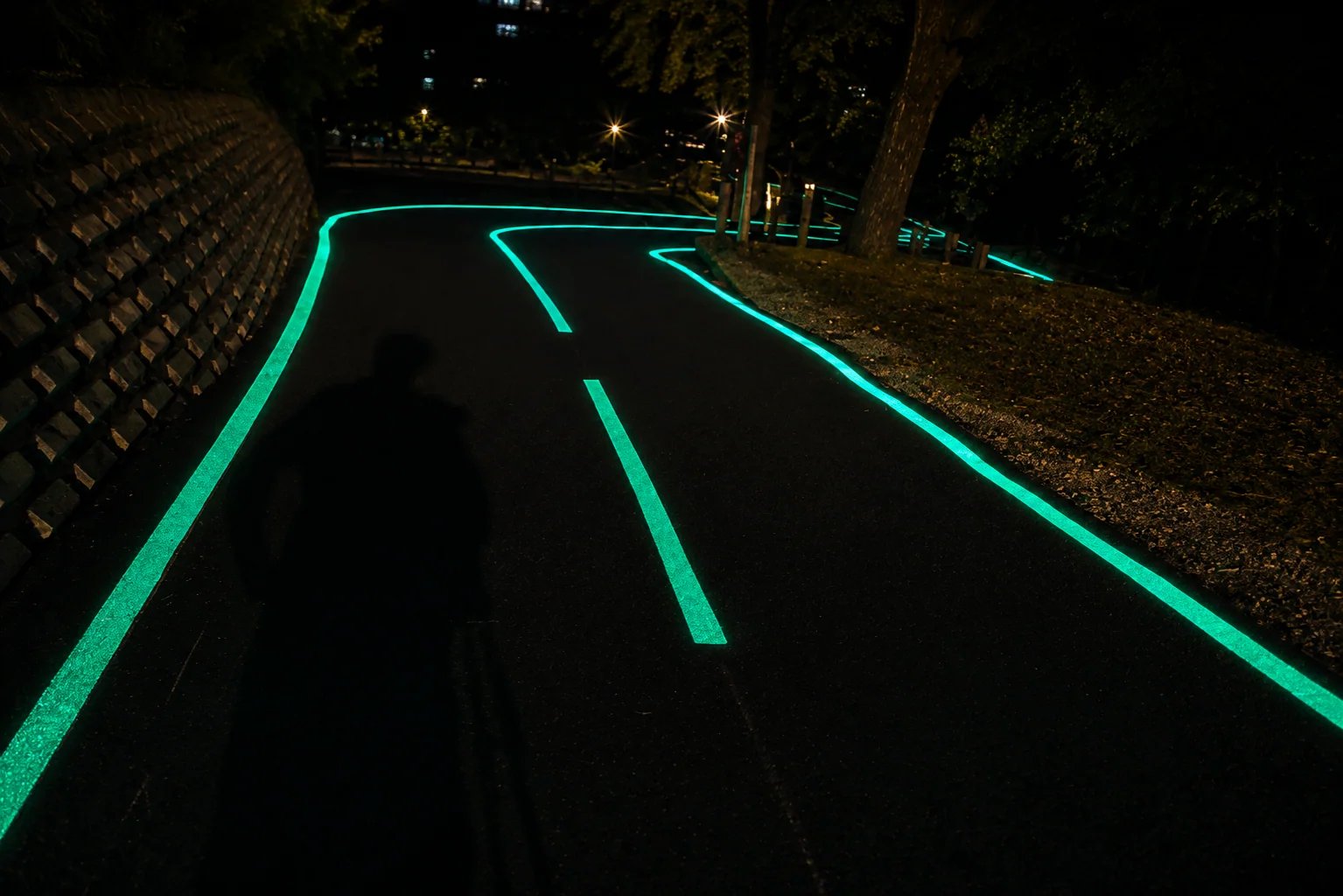

Lane lines and directional information
Selected lane boundaries can incorporate photoluminescent material to remain visible as surrounding light decreases. Possible uses include internal roads, parking lanes, scenic roads, low-speed vehicle routes and bicycle lanes. Dark asphalt can provide strong contrast with green or blue-green markings.
Arrows can indicate straight travel, left and right turns, exits, parking circulation and bicycle routes. They can make areas easier to understand where drivers or pedestrians need clear directional information.
Parking areas and underground garages
Parking uses include bay lines, entry and exit arrows, pedestrian routes, ramp guidance and direction lines. Underground garages can use artificial lighting to charge the material, but charging performance should always be tested under the existing lighting system.

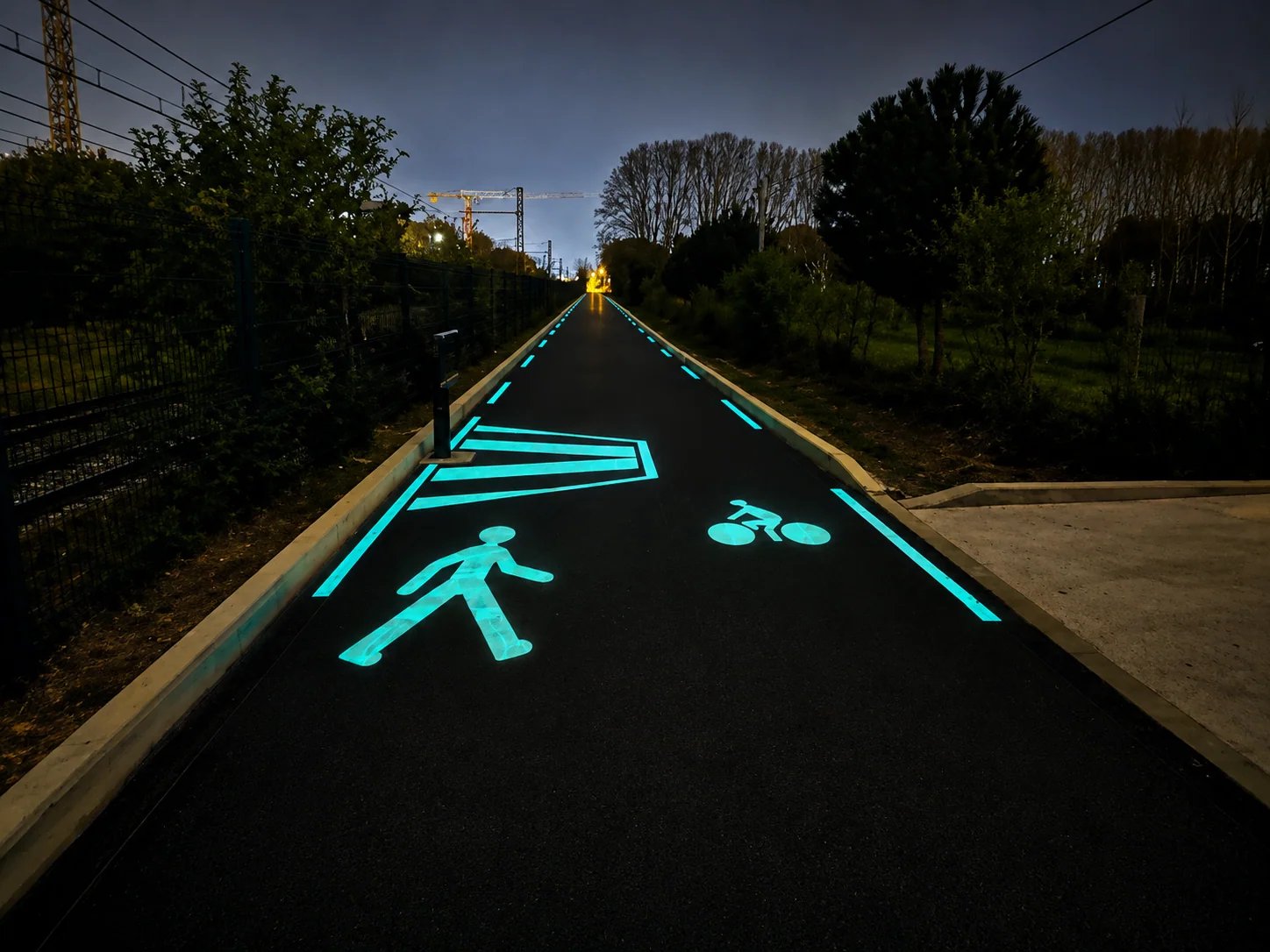

Bicycle and pedestrian routes
Bicycle routes may pass through darker areas in parks, scenic routes, campuses and waterfront paths. Photoluminescent center or edge lines can supplement nighttime guidance at lane boundaries, curves, intersections, direction arrows and shared paths. Daylight can be the main charging source outdoors.
Pedestrian applications include walkway borders, crossings, walking routes through parking areas, park paths and campus pathways. A continuous luminous route can make the direction of travel easier to understand after dark.
For pavement symbols, consider arrows, walking and bicycle symbols, exit markings and lane indicators. Keep the markings simple and recognizable: too many luminous symbols can create visual clutter.
Select the glow color and assess charging
Green and blue-green are among the most common photoluminescent colors. Green generally provides a strong glow and high nighttime visibility. Blue-green has a cooler appearance that can suit landscape or modern pavement projects. Choose according to pavement color, surrounding lighting, required contrast, pigment performance and project design.
Outdoor markings can absorb sunlight; indoor and covered areas rely more on artificial lighting. Charging depends on light intensity, exposure time, pigment quality, coating thickness and surface cleanliness. Areas receiving stronger light usually charge more effectively.
Match the coating system to the substrate
Depending on the system, glow traffic markings may be applied to asphalt, concrete, epoxy flooring, resin pavement or colored pavement. Select the primer and binder for the substrate.
Photoluminescent materials often perform better over a light-colored base coat, which helps reflect more light through the luminous material. A typical layer arrangement may be:
- Pavement
- Primer
- White base coat
- Photoluminescent coating
- Protective topcoat
Prepare the surface for adhesion
Before applying the marking material, the pavement should normally be clean, dry, stable, free from oil and dust, and free from loose material. Old coatings or contaminated surfaces may need additional treatment. Poor preparation can lead to peeling or premature wear.
Design for skid resistance and vehicle wear
Traffic markings should not create slippery areas, particularly on curves, ramps, pedestrian crossings, bicycle lanes and parking entrances. Anti-slip aggregate may be incorporated into the system. Balance:
Glow Performance + Adhesion + Skid Resistance + Durability
Tire contact and repeated vehicle movement can cause abrasion, turning wear, braking wear and contamination. Heavy-traffic areas require more durable materials than decorative, low-traffic applications. In some projects, luminous markings may perform better beside the main tire path rather than directly under constant wheel traffic.
Allow for weather and maintenance
Outdoor markings must withstand sunlight, UV exposure, rain, temperature changes, dust, water and tire residue. Select the binder and protective layer for outdoor use.
Dust, mud, oil, tire marks and leaves can reduce performance by covering the luminous surface. Routine cleaning helps keep it exposed and improves charging efficiency.
Compare photoluminescent, reflective and LED markings
- Reflective markings reflect light from headlights or another external source.
- Photoluminescent markings store light first and release passive afterglow later. They can integrate into the pavement without wiring for the afterglow, but their brightness gradually decreases.
- LED markings actively produce light. They need electrical or solar power, provide a stronger visual effect, involve more complex installation and can maintain consistent brightness.
Each system has different advantages. Some projects combine reflective and photoluminescent systems to provide reflection under headlights and passive visibility when direct light is limited.
Retain required lighting and standard road markings
Glow traffic markings cannot replace street lighting. They make pavement features more visible but do not illuminate the surroundings. They cannot replace the lighting needed to see vehicles, pedestrians, obstacles, curbs or road conditions.
They also do not automatically replace standard road markings. Public traffic markings may have specific requirements for color, line width, reflectivity, placement, skid resistance and compliance with traffic regulations. Use photoluminescent materials only where they are compatible with local standards.
Apply the design to the project
- Parking lots: bay lines and directional arrows.
- Campuses: internal roads and pedestrian routes.
- Industrial parks: vehicle and pedestrian guidance.
- Scenic areas: decorative and functional nighttime routes.
- Bicycle paths: center lines and edge guidance.
- Underground garages: low-light parking and pedestrian guidance.
- Residential communities: internal roads and walking routes.
These applications depend on the site conditions and complete system described above.
Test a section before large-scale installation
Build a test section using the actual pavement, primer, base coat, photoluminescent material and topcoat. Evaluate daytime appearance, nighttime glow, adhesion, skid resistance, wear resistance and charging conditions. This helps confirm whether the system fits the project.
The complete system combines surface preparation, charging conditions, a suitable binder, skid resistance, wear resistance and regular maintenance. Used correctly, photoluminescent traffic markings can add practical nighttime guidance and a distinctive pavement appearance.
